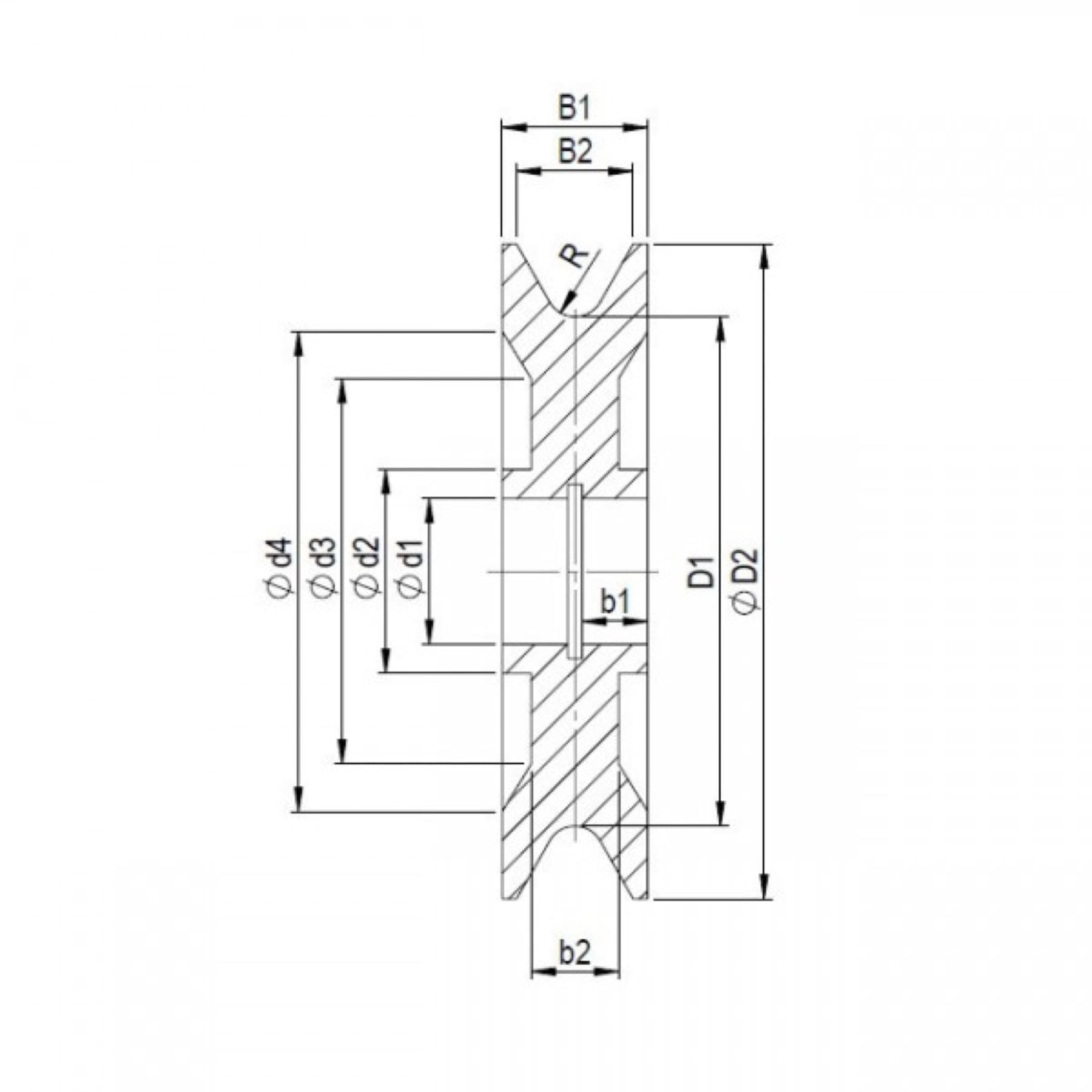

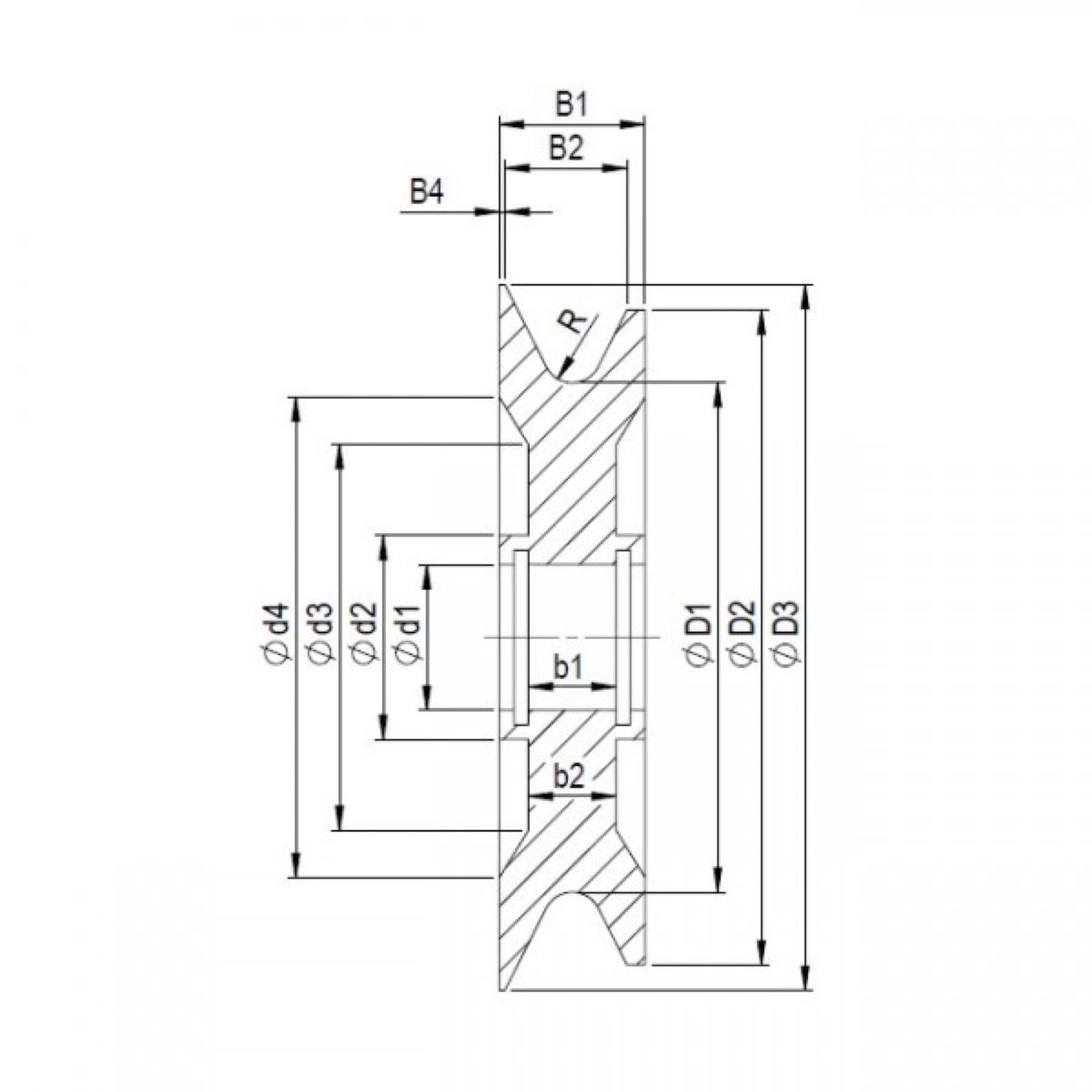

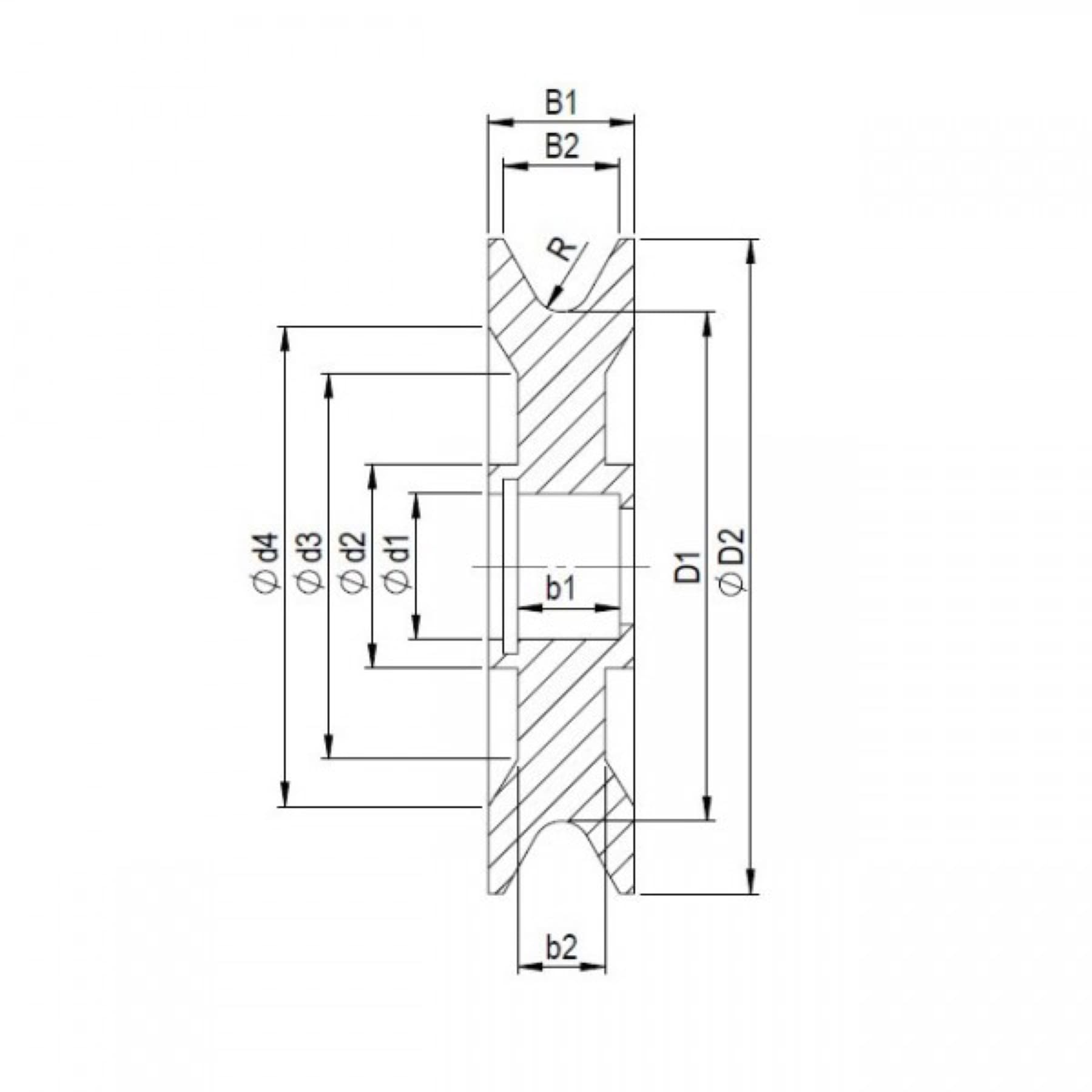

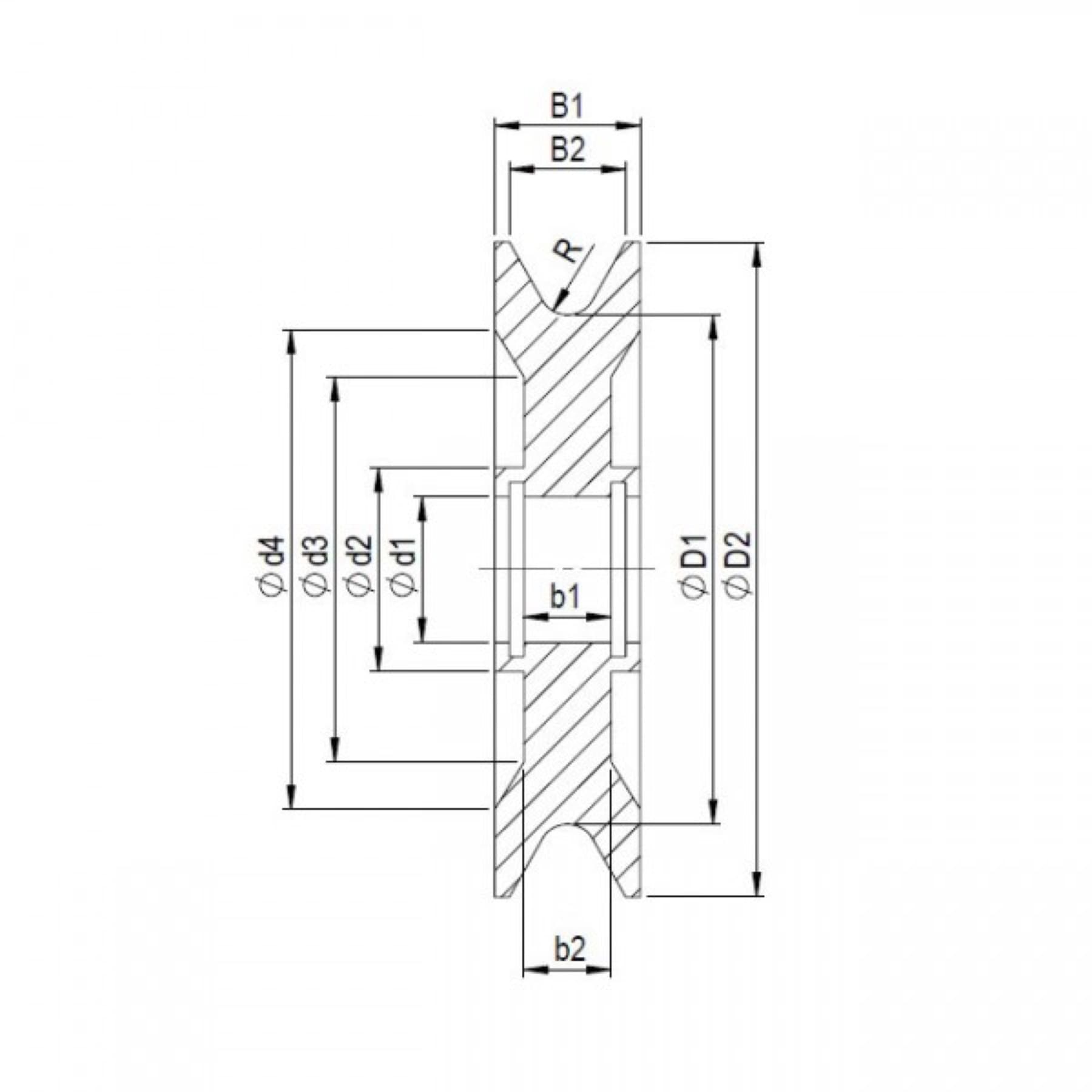

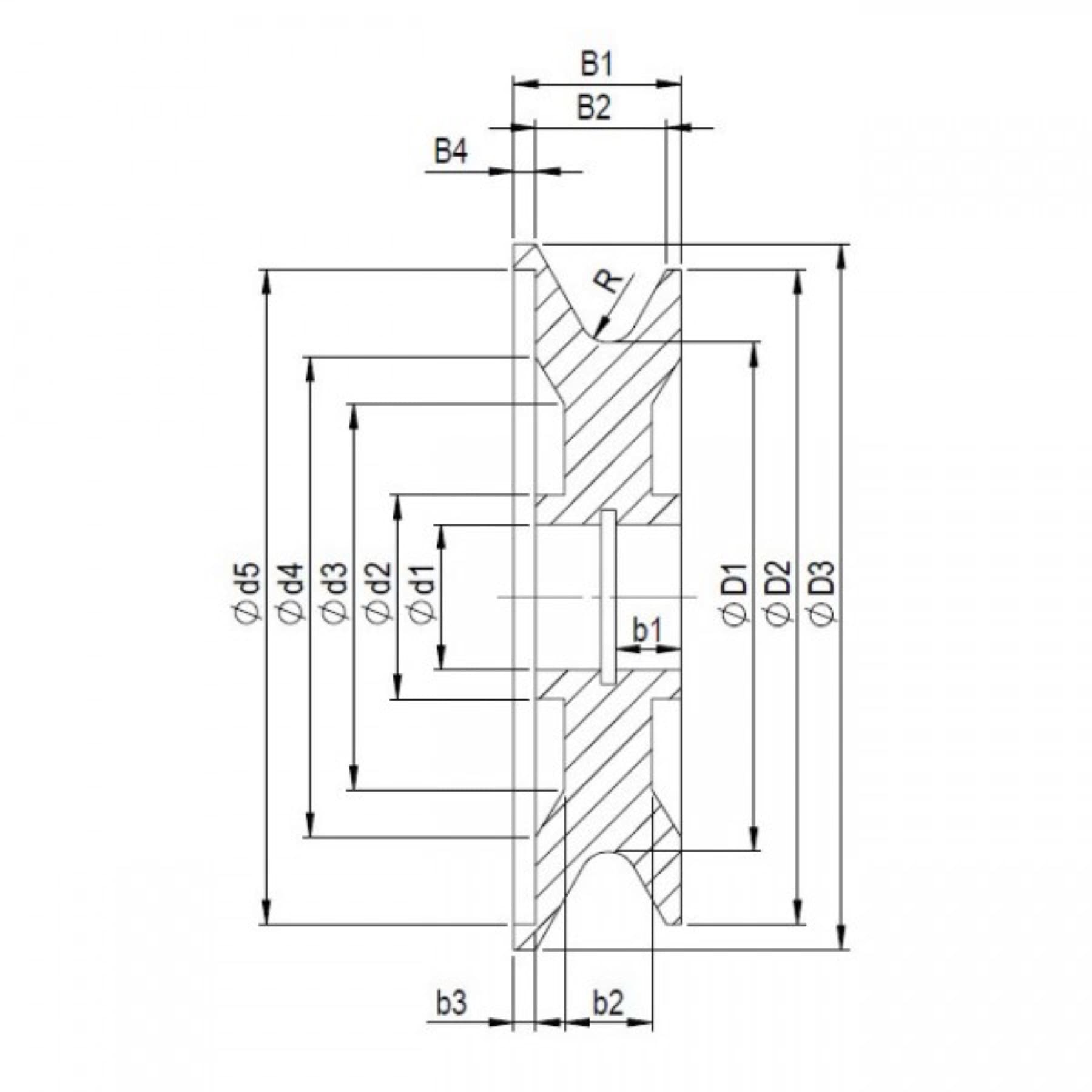

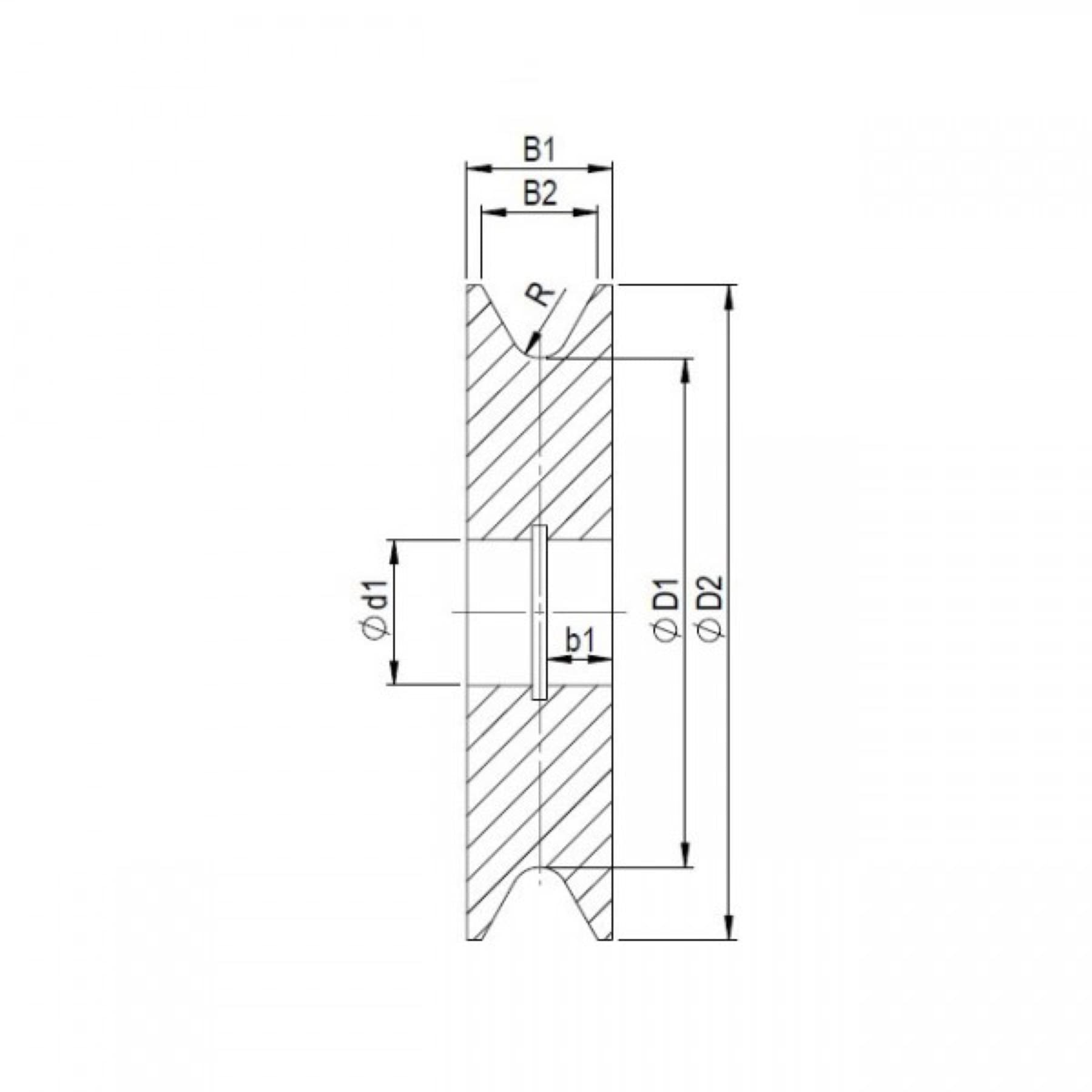

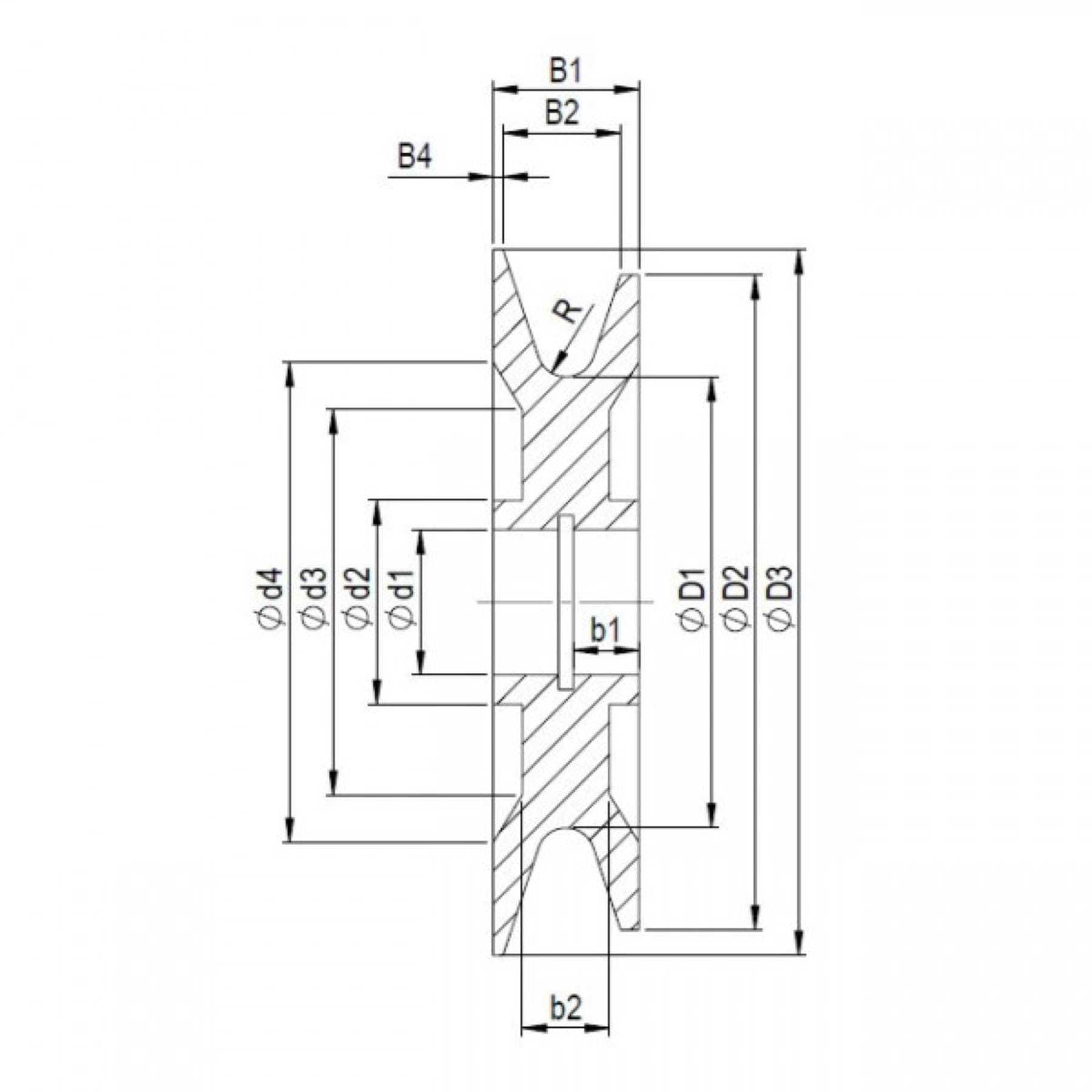

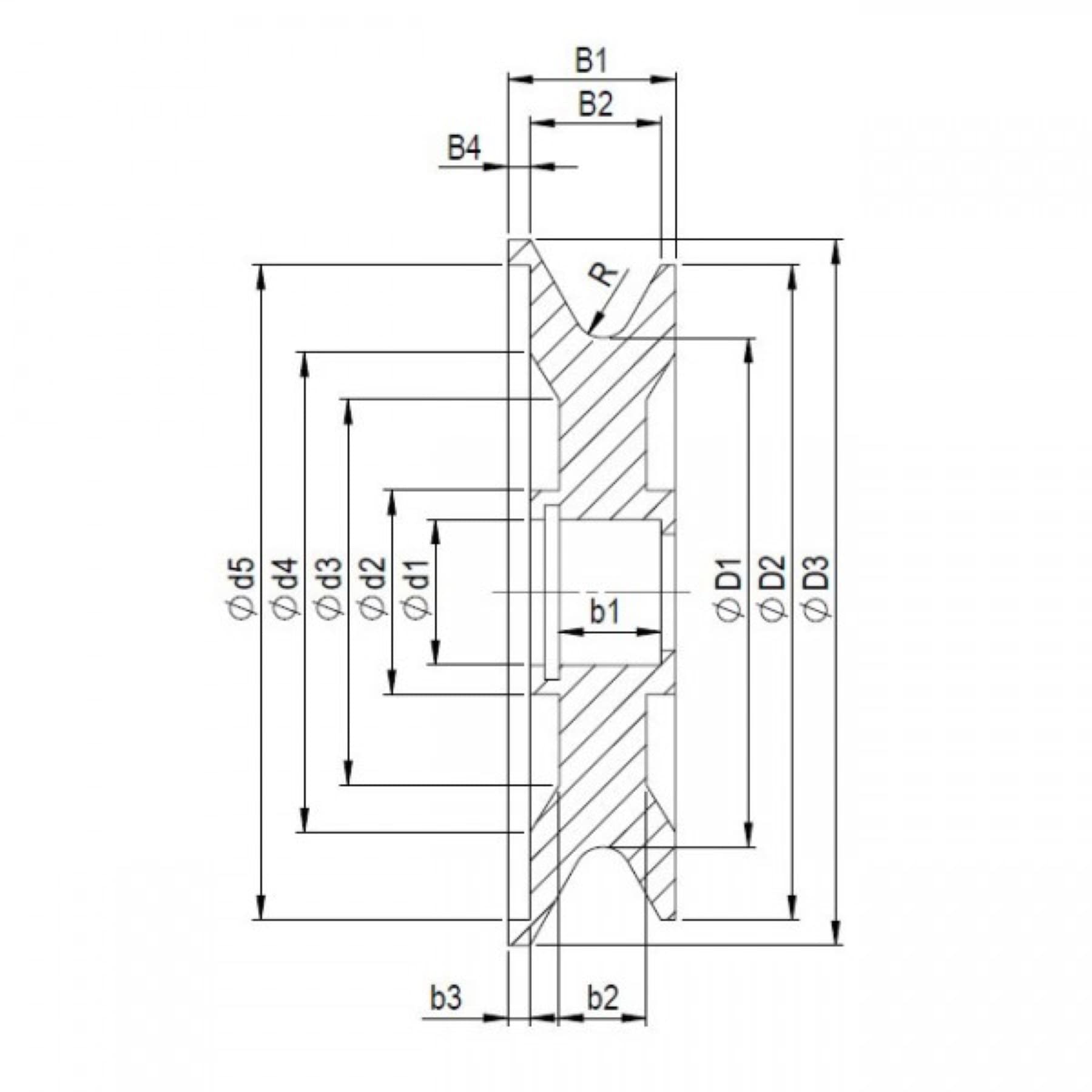

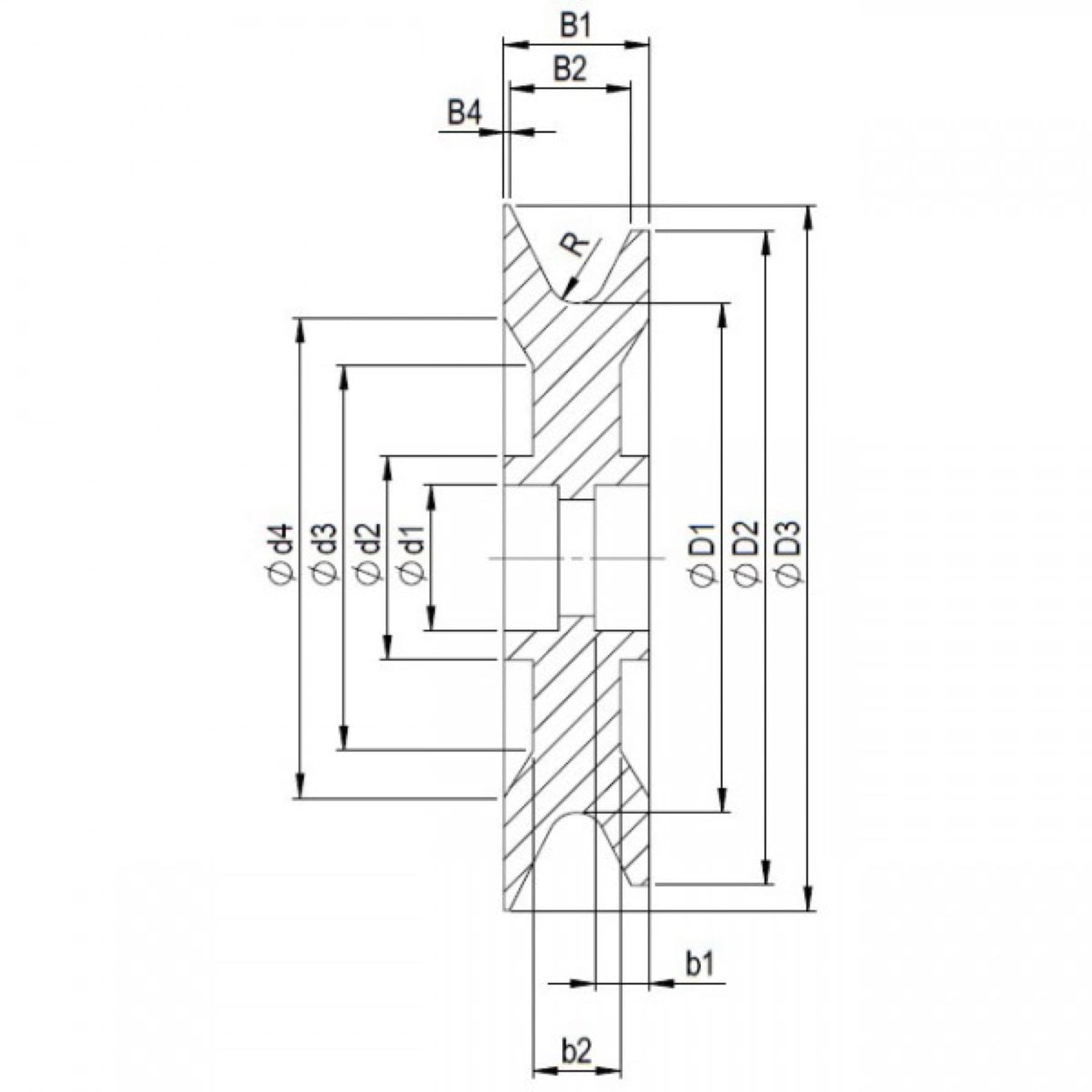

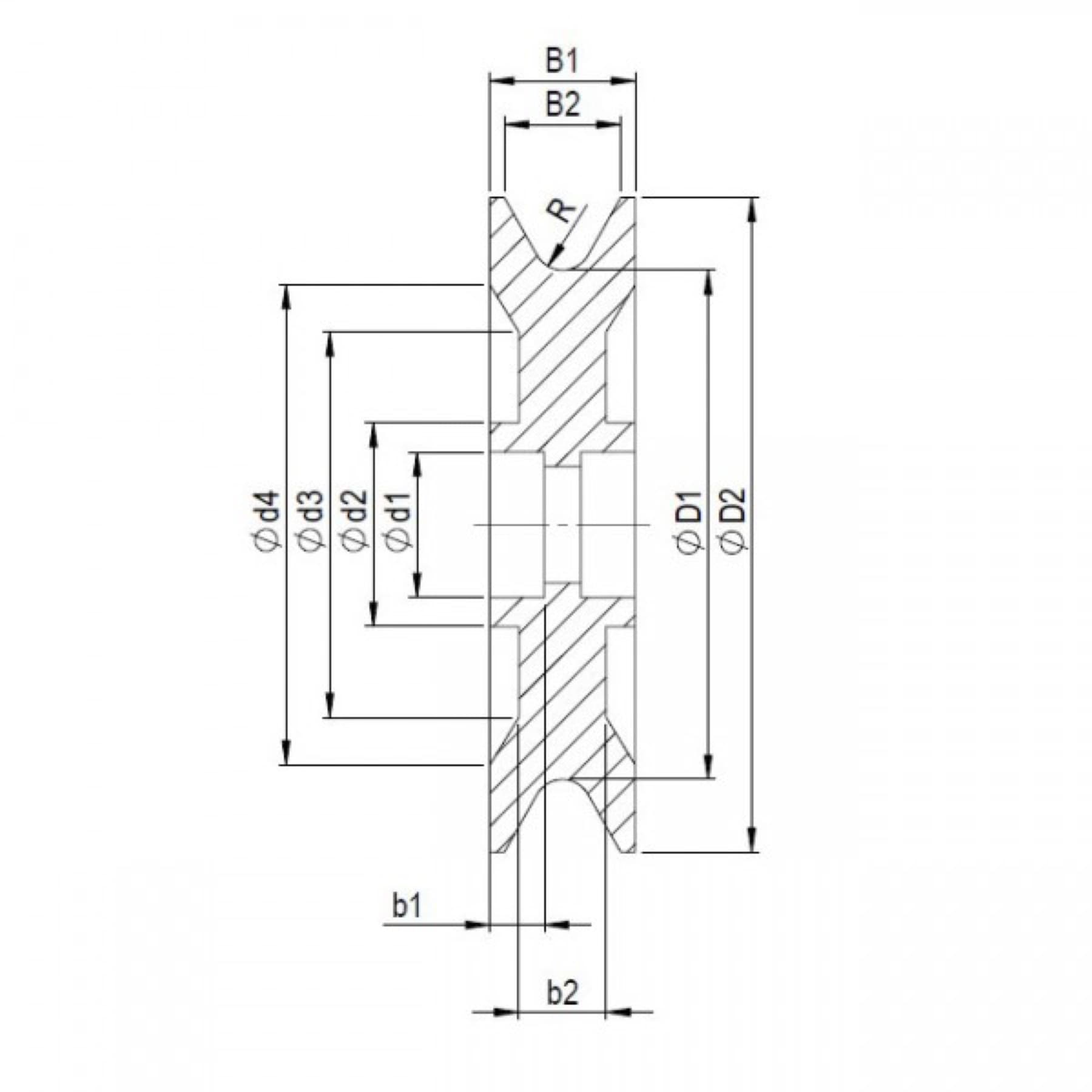

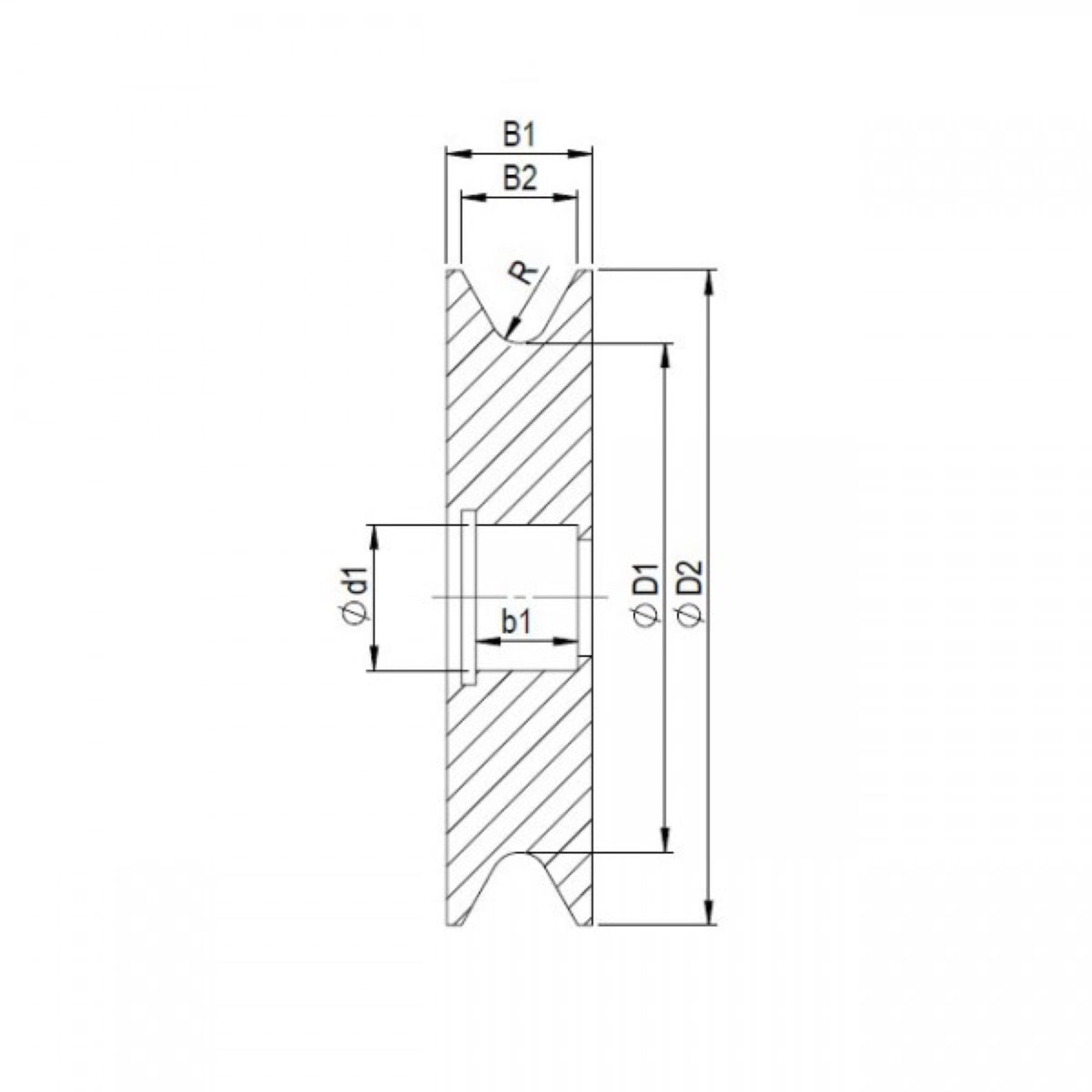

Deflection Rollers with U-Contour

RI 02 Ceramic (Aluminium Oxide)
Colour: light grey
Hardness: 1400 to 1600 HV
Coating thickness: 0.1 to 0.5 mm (according to customer requirements)
Roughness: Ra 0.1 to 0.5 µm
Density: 3.95 g/cm3

RI 04 Ceramic (Chromium Oxide)
Colour: black
Hardness: 1300 to 1500 HV
Coating thickness: 0.1 to 0.5 mm (according to customer requirements)
Roughness: Ra => 0.5 µm
Density: 5.22 g/cm3

RI 10 Carbide (Tungsten Carbide)
Hardness: 1200 to 1400 HV
Coating thickness: 0.1 to 0.5 mm (according to customer requirements)
Roughness: Ra => 0.5 µm

RI 18 Carbide (Chromium Carbide)
Coating thickness: 0.1 to 0.5 mm (according to customer requirements)
Roughness: Ra => 0.5 µm

RI 30 Hardcoat
Colour: dark grey
Hardness: 400 to 550 HV
Coating thickness: approx. 55 µm (according to customer requirements)
Roughness: is increased

RI 14 Ceramic (Zirconium Oxide)
